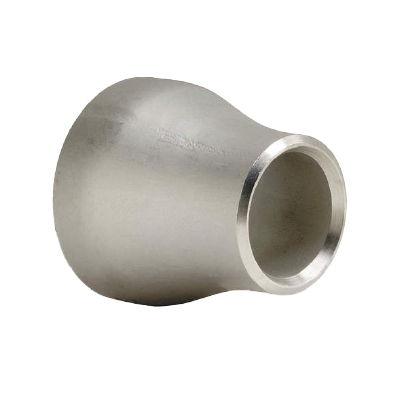

Kaynaklı Konsantrik Redüksiyon Dikişli Paslanmaz Çelik
PASLANMAZ BAĞLANTI ELEMANLARI
| 304 - KOD | ÖLÇÜ | 316 - KOD |
|---|---|---|
| PA044-101 | 26.9 - 21.3 T:2 mm | PA106-101 |
| PA044-102 | 33.7 - 26.9 T:2 mm | PA106-102 |
| PA044-103 | 33.7 - 21.3 T:2 mm | PA106-103 |
| PA044-104 | 42.4 - 33.7 T:2 mm | PA106-104 |
| PA044-105 | 42.4 - 26.9 T:2 mm | PA106-105 |
| PA044-106 | 42.4 - 21.3 T:2 mm | PA106-106 |
| PA044-107 | 48.3 - 42.4 T:2 mm | PA106-107 |
| PA044-108 | 48.3 - 33.7 T:2 mm | PA106-108 |
| PA044-109 | 48.3 - 26.9 T:2 mm | PA106-109 |
| PA044-110 | 48.3 - 21.3 T:2 mm | PA106-110 |
| PA044-111 | 60.3 - 48.3 T:2 mm | PA106-111 |
| PA044-112 | 60.3 - 42.4 T:2 mm | PA106-112 |
| PA044-113 | 60.3 - 33.7 T:2 mm | PA106-113 |
| PA044-114 | 60.3 - 26.9 T:2 mm | PA106-114 |
| PA044-115 | 60.3 - 21.3 T:2 mm | PA106-115 |
| PA044-116 | 76.1 - 60.3 T:2 mm | PA106-116 |
| PA044-117 | 76.1 - 48.3 T:2 mm | PA106-117 |
| PA044-118 | 76.1 - 42.4 T:2 mm | PA106-118 |
| PA044-119 | 76.1 - 33.7 T:2 mm | PA106-119 |
| PA044-120 | 88.9 - 76.1 T:2 mm | PA106-120 |
| PA044-121 | 88.9 - 60.1 T:2 mm | PA106-121 |
| PA044-122 | 88.9 - 48.3 T:2 mm | PA106-122 |
| PA044-123 | 88.9 - 42.4 T:2 mm | PA106-123 |
| PA044-124 | 88.9 - 33.7 T:2 mm | PA106-124 |
| PA044-125 | 114.3 - 88.9 T:2.6 mm | PA106-125 |
| PA044-126 | 114.3 - 76.1 T:2.6 mm | PA106-126 |
| PA044-127 | 114.3 - 60.3 T:2.6 mm | PA106-127 |
| PA044-128 | 114.3 - 48.3 T:2.6 mm | PA106-128 |
| PA044-129 | 139.7 - 114.3 T:2.6 mm | PA106-129 |
| PA044-130 | 139.7 - 88.9 T:2.6 mm | PA106-130 |
| PA044-131 | 139.7 - 76.1 T:2.6 mm | PA106-131 |
| PA044-132 | 139.7 - 60.3 T:2.6 mm | PA106-132 |
| PA044-133 | 139.7 - 48.3 T:2.6 mm | PA106-133 |
| PA044-134 | 168.3 - 139.7 T:2.6 mm | PA106-134 |
| PA044-135 | 168.3 - 114.3 T:2.6 mm | PA106-135 |
| PA044-136 | 168.3 - 88.9 T:2.6 mm | PA106-136 |
| PA044-137 | 219.1 - 168.3 T:2.6 mm | PA106-137 |
| PA044-138 | 219.1 - 139.7 T:2.6 mm | PA106-138 |
| PA044-139 | 219.1 - 114.3 T:2.6 mm | PA106-139 |
| PA044-140 | 273 - 219.1 T:2.6 mm | PA106-140 |
| PA044-141 | 273 - 168.3 T:2.6 mm | PA106-141 |
| PA044-142 | 273 - 139.7 T:2.6 mm | PA106-142 |
